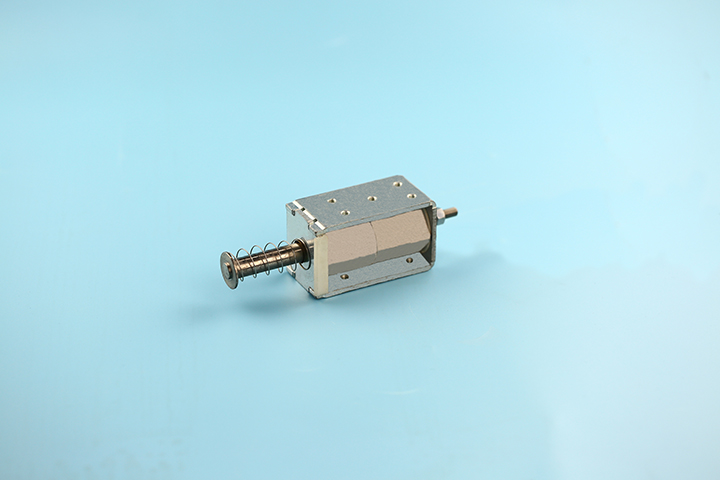

高性能低功率快速推動式電磁鐵
High performance low power fast pushing electromagnet
主要用于在收到系統信號給出開門指令，門控機構按照內部設定的指令驅動執行機構，打開安全門；同時，電磁鐵鎖止機構鎖住執行機構進行機械限位，確保安全門不會出現異常動作，確保人員通過安全。
It is mainly used to give the door opening command after receiving the system signal, and the door control mechanism drives the actuator according to the internally set command to open the safety door; At the same time, the electromagnet locking mechanism locks the actuator for mechanical limit, so as to ensure that the safety door will not act abnormally and that personnel can pass safely.
產品描述
- 應用領域 Application area -
應用于高鐵門控系統電磁鐵（CRH）。
It is applied to high-speed rail door control system electromagnet (CRH).
- 主要參數 Main parameter-
| 電阻 | 961 Ω ±5% |
| Resistance | |
| 電流 | 0.21A |
| Electric current | |
| 行程 | 10MM |
| Trip | |
| 絕緣耐壓 | 1500V/3mA/1s |
| Dielectric Strength | |
| 輸入電壓 |
DC 24V/110V (電壓可選） (Voltage optional) |
| Input voltage | |
| 通電比 | 100% |
| Power on ratio | |
| 防護 | IP54 |
| Protect | |
| 耐溫 | -40-125° |
| Temperature resistance | |
| 功率 |
25W(功率可設計） (Power can be designed) |
| Power |
